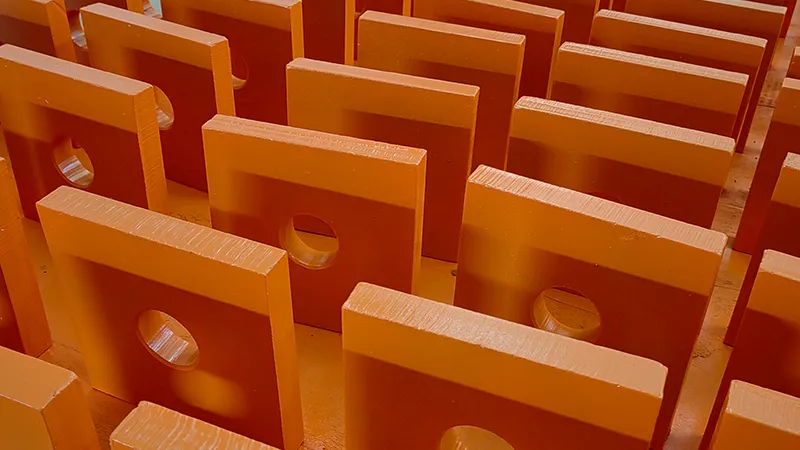

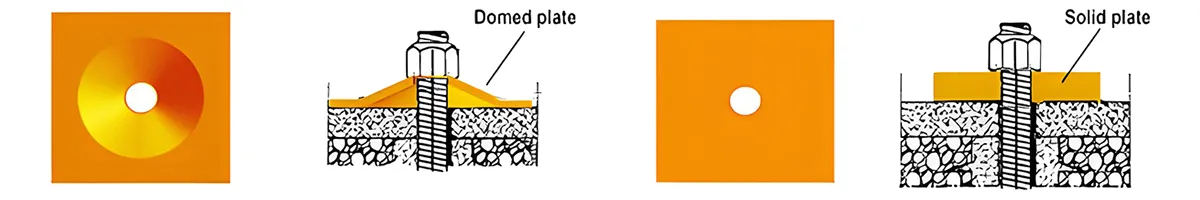

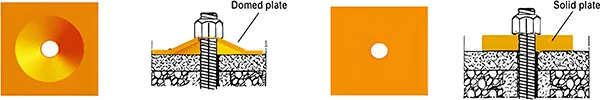

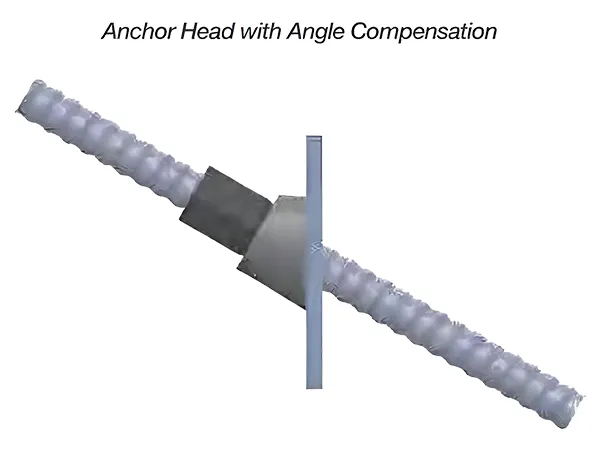

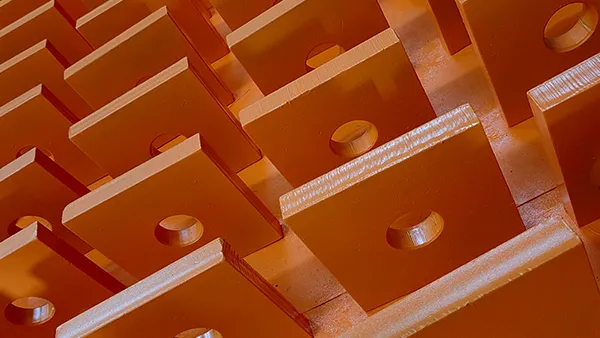

The self-drilling anchor plate is the tool of choice for securing anchoring points. Its dome-shaped or flat design offers versatility, ensuring it can be applied to secure rock formations in various geological conditions.
Made using a cold-stamping process, these plates provide reliable connections with the structure, ensuring stability and load transfer.
| Size | Domed Plate | Flat Plate | ||||
| A×A×B (mm) | D (mm) | Weight (kg) | A×A×B (mm) | D (mm) | Weight (kg) | |
| R25 | 150×150× 8 | 30 | 1.4 | \ | \ | \ |
| R32 | 200×200×10 | 35 | 3.2 | \ | \ | \ |
| R32 | 200×200×12 | 35 | 3.8 | \ | \ | \ |
| R38 | 200×200×12 | 41 | 3.8 | \ | \ | \ |
| R51 | \ | \ | \ | 200×200×30 | 56 | 9 |
| R51 | \ | \ | \ | 250×250×40 | 56 | 18.5 |
| T76 | \ | \ | \ | 250×250×40 | 80 | 18 |
| T76 | \ | \ | \ | 250×250×60 | 80 | 27 |
| T30 | 200×200× 8 | 36 | 2.5 | \ | \ | \ |
| T40 | 200×200×12 | 56 | 3.5 | \ | \ | \ |
| T52 | \ | \ | \ | 220×220×35 | 65 | 12 |
| T73 | \ | \ | \ | 250×250×40 | 80 | 18 |
| T103 | \ | \ | \ | 240×240×50 | 110 | 19 |
| Note: Other dimensions are available upon request. | ||||||

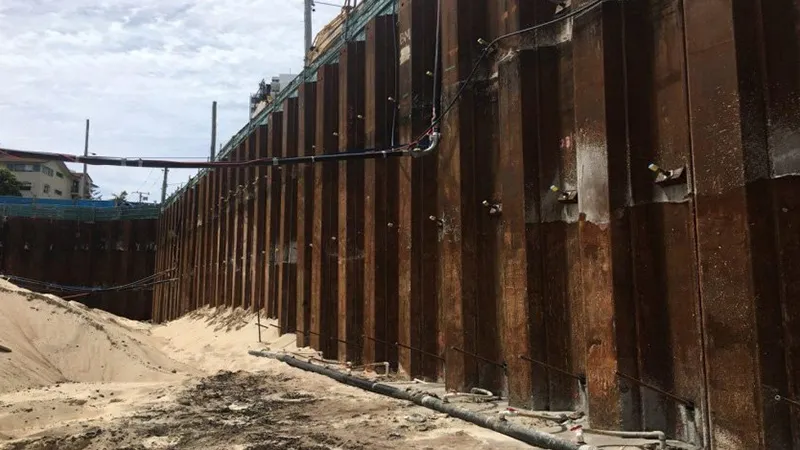

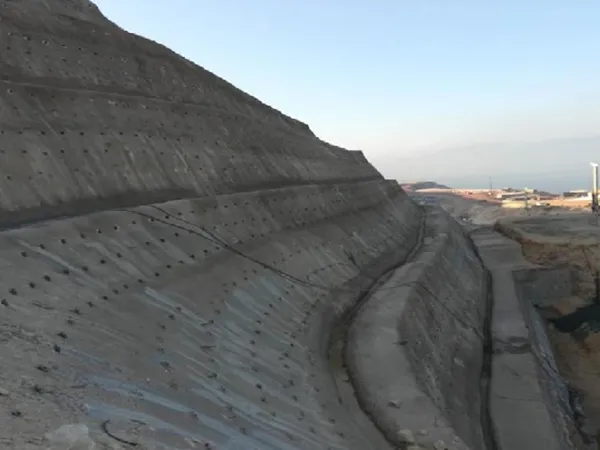

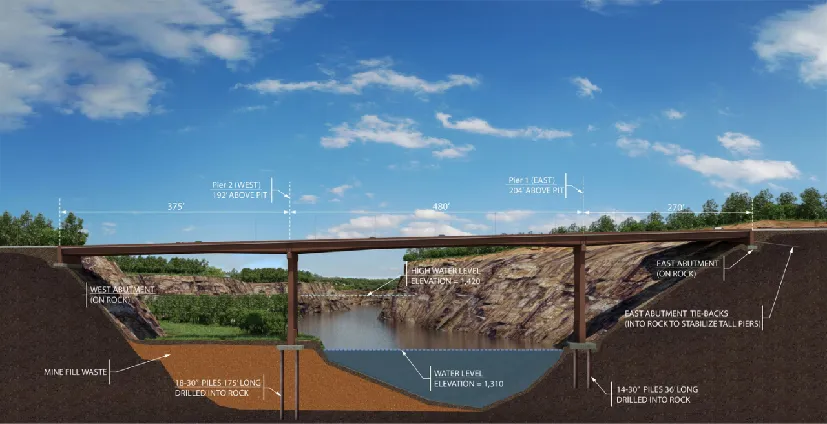

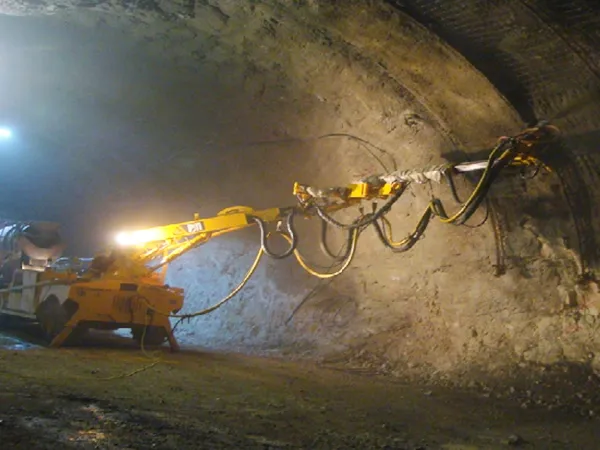

The self-drilling anchor system is an advanced anchoring solution on the market. It provides stability in soil or rock formations and is a key anchoring system in rock reinforcement projects, ensuring safety and structural rigidity.

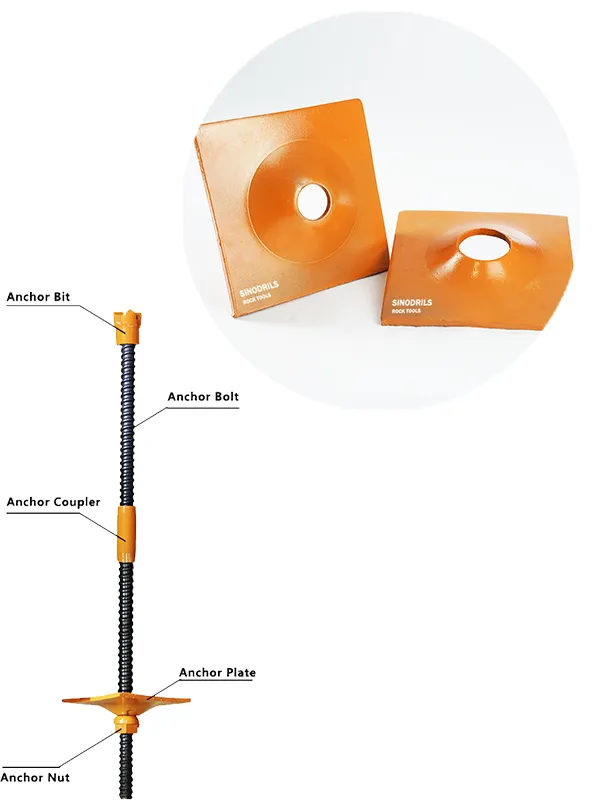

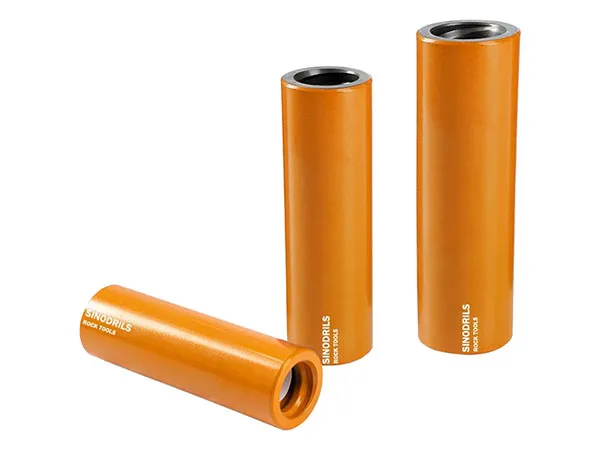

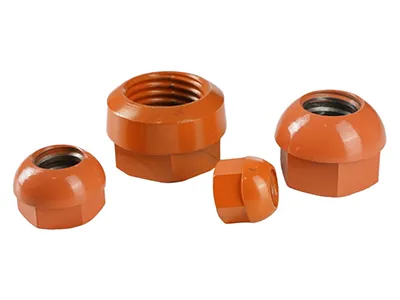

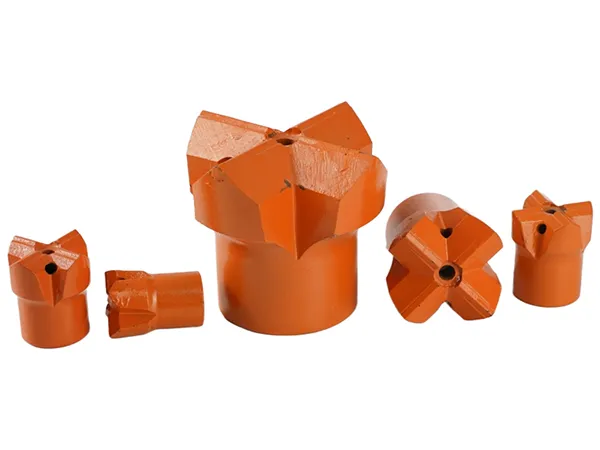

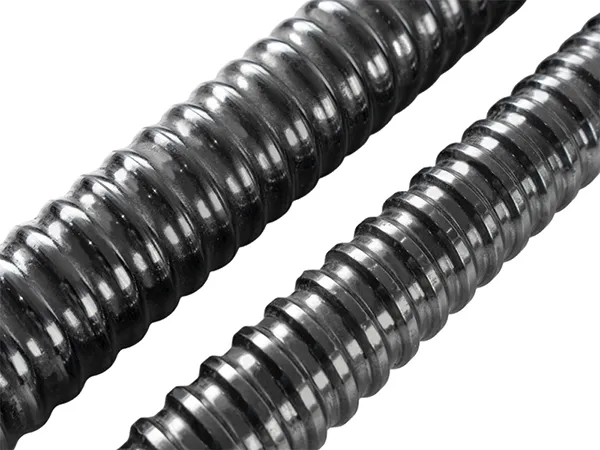

Our self-drilling anchor is equipped with different parts. At the drilling end is the anchor bit, which creates the borehole while facilitating grouting. The anchor bolt, serves as the primary support structure. The anchor coupler extends the bolt's length when necessary, while the anchor plate distributes surface loads to ensure stability. Finally, the anchor nut locks the system securely in place, completing the setup for optimal performance.
